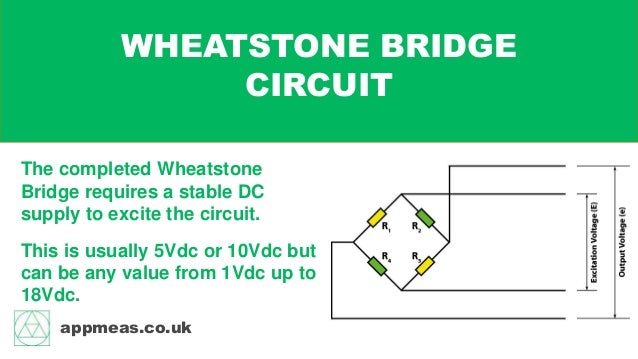

Torque sensor working principle. What is the working principle of the torque sensor of a Bosch ebike motor?. Firstly, we need to understand the underlying physics and material science behind the rotary torque sensor working principle, which is the strain gauge (sometimes referred to as Strain gage) Metal foil strain gauge is a sensor whose electrical resistance varies with applied force. A Torque Sensor is a sensor that converts a torsional mechanical input into an electrical output signal The torque sensor is used to measure the torque on a rotating system such as an engine, crankshaft, gearbox, transmission, etc Torque can be divided into two typesStatic torque and Dynamic torque.

Any electric bike Toque sensor is a Load Cell type device It measures the force you are applying to the peddles, then it add a proportional amount of electric force to the systems * If you are coasting, it adds no extra * If you are gently pedd. Type 0325DF torque measuring flanges operate on the strain gage principle The integral, digital measurement precondi tioning system produces analog or digital output signals, which are transmitted without contact The rotor runs in the stator ring without mechanical bearings and is therefore free from wear. Torque sensors allow the rider to work with the system to combine manual propulsion with electric propulsion assistance Where Can I Get a Torque Sensor Well, that is easy!.

Let's work together Easy to integrate, easy to use You don’t need a background in robotics to use the FT 300 Force Torque Sensor Its intuitive programming interface guides you through the steps to an efficient forcesensitive application. Firstly, we need to understand the underlying physics and material science behind the torque sensor working principle, which is the strain gauge (sometimes referred to as Strain gage) Metal foil strain gauge is a sensor whose electrical resistance varies with applied force In other words, it converts (or transduces) force, pressure, tension. The only other sensors on a vehicle like this are the throttle angle sensor and gas pedal for vehicles with throttle by wire The reason for multiple sensors is redundancy, accuracy and diagnostics Multiple sensors are required since the steering angle is critical for the stability control system, and any discrepancy could mean the difference.

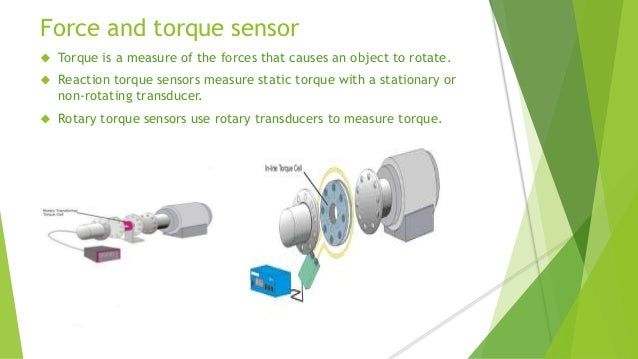

Fig 3 Reaction Torque Sensor How does a Torque Sensor work?. Torque Sensors (or Torque Sensors) measure torque in a variety of methods The basic principle is, in essence, a very simple mechanical process, it’s a measure of the ‘force’, being used in turning (or attempting to turn) an element When a force or ‘torque’ is applied to a shaft;. Luckily, modern sensors can be both accurate and easily implemented in the manufacturing setting, giving manufacturers toque sensors that are within 005% of full scale strain gauge units Additionally, these torque transducers can be designed directly into production equipment, making them ideal for factories.

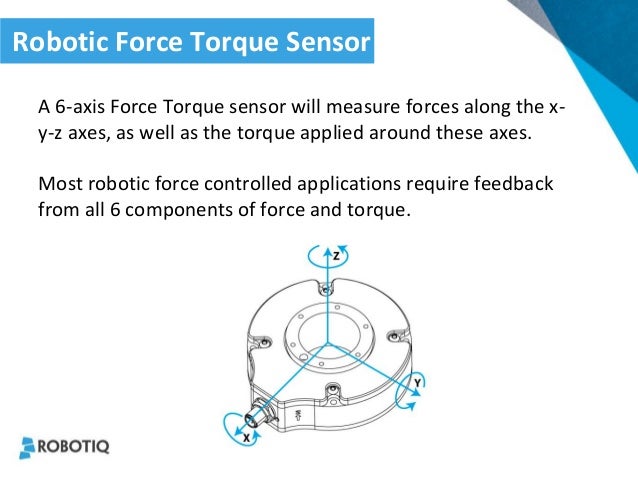

How Strain Gauge 6Axis Force Torque Sensors Work As stated above, strain gauges use a simple principle – the resistance of a flexible conductive foil changes when placed under strain When used in force sensors, strain gauges are attached to a material with known mechanical properties, like steel. Inline torque sensors are made by the insertion of a torque sensor between two torquecarrying components The process is similar to inserting an extension between a socket wrench and a socket With inline torque measurement, the torque sensor can be placed as near as possible to the torque being measured, helping avoid measurement errors like extraneous loads or "parasitic" torques from bearings, for example. A reaction torque sensor takes advantage of Newton's third law 'for every action there is an equal and opposite reaction'.

Inline torque sensors are made by the insertion of a torque sensor between two torquecarrying components The process is similar to inserting an extension between a socket wrench and a socket With inline torque measurement, the torque sensor can be placed as near as possible to the torque being measured, helping avoid measurement errors like extraneous loads or "parasitic" torques from bearings, for example. Axis hybrid sensing one force and two torque measurements and the details would be explained in Section II Many variants of force sensors are possible, based on different sensing principles and the application scenarios Table I summarizes recent force sensor and their characteristics Liu et al 4 developed a hydrostatic water pressure. The sensor’s measuring range covers /−10 Nm A mechanical angle limiter prevents the torsion bar from being overloaded when higher steering torques are applied Variants Optionally, an index magnet and an index sensor can be incorporated into the torque sensor The index sensor delivers a signal to the ECU for each full turn of the.

It removes the need to have a throttle It removes the issues of Brake Throttle at same time, etc It can be very battery friendly, as the bike take power level input from your legs as opposed to your thumb Often there is a variable level of assist, so that you can get more or less of a boost. T40CB torque sensor is a compact, short, and massoptimized torque flange with a central bore of 375mm and 465mm for high speeds up to 30,000 rpm T40HS T40HS is the space and cost saving torque transducer for your highspeed application up to 45,000 rpm T40FM. How Strain Gauge 6Axis Force Torque Sensors Work As stated above, strain gauges use a simple principle – the resistance of a flexible conductive foil changes when placed under strain When used in force sensors, strain gauges are attached to a material with known mechanical properties, like steel.

Like the rotary transformer, the infrared (IR) torque sensor utilizes a contactless method of getting the torque signal from a rotating sensor back to the stationary world Similarly using a rotary transformer coupling, power is transmitted to the rotating sensor However, instead of being used to directly excite the strain gauge. A torque sensor having a sensor element, wherein the sensor element is manufactured in accordance with the manufacturing steps of applying a first current pulse to the sensor element, wherein the first current pulse is applied such that there is a first current flow in a first direction along a longitudinal axis of the sensor element, wherein the first current pulse is such that the. Absolute, gage, & true gage pressure sensors for test & measurement specs, from general industrial processes to specialized hazardous locations Torque Transducers From basic torque telemetry to advanced digital measurement, Honeywell has been designing rotary & reaction torque transducers for more than 50 years.

A torque sensor is a type of throttle that determines how much juice to feed the motor based on how hard the rider is pedaling Any electric bike Toque sensor is a Load Cell type device It measures the force you are applying to the peddles, then it add a proportional amount of electric force to the systems If you are coasting, it adds no extra. Daniel Louks explains how radio crystals installed in the torque sensor to the input shaft help record frequency response and measure horse power The electronics that amount to a radio crystal are installed into the input shaft measure the amount of resistance passing through the engine shaft. Type 0170MS torque sensors operate on the strain gage principle and supply an analog output signal of 0 ±5 VDC which is contactless transferred Available also with integrated rotational angle/speed measurement.

The design of our SENSODRIVE torque sensors The basic principle of SENSODRIVE torque sensors is based on the resistance change of strain gauges This is detected and interpreted with great accuracy The SENSODRIVE torque sensors offer all the characteristics needed for their specialist field – use in robot joints. In addition to combined steering torque and angle sensors, HELLA also supplies sensors for steering torque only The steering torque sensor is integrated in the electromechanical power steering and provides the customer with information on the steering torque Ratiometric measuring principle to improve accuracy over total measurement range. Working principle of FBG The Importance of Calibration for Torque Sensors and Load Cells Jonathan Armstrong In this interview, AZoSensors talks to Jonathan Armstrong, a manufacturing engineer at Sensing Systems Corporation, about the necessity of Torque sensor and Load cell calibration.

Firstly, we need to understand the underlying physics and material science behind the torque sensor working principle, which is the strain gauge (sometimes referred to as Strain gage) Metal foil strain gauge is a sensor whose electrical resistance varies with applied force. Measuring static reaction torque and rotating torque Our portfolio includes both static torque sensors based on strain gauge technology as well as rotary shaft torque sensors for dynamic measurements Torque sensors are used in marine, offshore, automotive, and aerospace engineering. , 04 AM If you study exploded views of the Bosch eBike motor you can follow the 2 stage gear reduction (130 or so) with plastic and metal gears from the fast spinning brushless DC motor (rumor has it sourced from their windscreenwiperdepartment) to the.

Basically the sensibility of the torque sensor depends on the translation ∆x which is directly linked to the current torsion angle The formal correlation of the torsion angle (φ), the torque (Mx), the length of the casing (l), the modulus of rigidity (G) and the polar area moment (Ip) is shown in equation (1). Rotary transformer torque sensors offer high accuracies and RPM ratings They are designed with an advanced transformer, shaft and housing to provide enhanced durability in rugged industrial applications Rotating shaft torque sensors are available in a wide range of configurations For Rotary Transformer products with a higher temperature. Dual Range Torque Sensor Type 4503B The sensor with builtin speed sensor up to 8192 pulses per revolution function in accordance with the strain gauge principle.

The ORT 230/240 torque sensor offers an ideal means for precise dynamic measurement of rotary and static torque Transducers can be as small as 10mNm with high bandwidths of up to 50Khz and speeds to rpm Ranges available up to 100Nm. BASIC DESIGN AND SENSOR PRINCIPLE The MMT torque sensor basic structure is shown hereafter Figure 2 Exploded view of the MMT torque sensor This sensor is made up of the following subassemblies • The rotor (grey and red parts), fixed on one rotary shaft of the steering column, is made by a plurality of permanent magnets fixed on a soft. Working Principle The general working principle of Force Sensors is that they respond to the applied force and convert the value into a measurable quantity There are various types of Force Sensors available in the market based on various sensing elements Most of the Force Sensors are designed using ForceSensing Resistors.

The torque measurement of the eddy current dynamometer is according to the principle of the same amount of applied torque and reaction torque in the opposite direction So, the torque can be measured by the dynamometer rotating torque (ie brake housing countertorque) to indicate. A prototype of the torque sensor was fabricated and the strain gauges were attached in accordance with the FEM results The finger joint torque sensor shown in Fig 15 has a torque range of ± 2 N·m, and dimensions of Φ31 mm × 42 mm To obtain the performance of the designed finger joint torque sensor accurately, it was necessary to. Traditional force/torque sensors usually have a constant resolution over the whole range High resolution and large measuring range cannot be well bal.

Torque Sensors (or Torque Transducers) measure torque in a variety of methods The basic principle is, in essence, a very simple mechanical process, it is a measure of the “force” being used (or attempting) to turn an element When a force of “torque” is applied to a shaft, the shaft twists (by a very small amount). Torque sensors allow the rider to work with the system to combine manual propulsion with electric propulsion assistance Where Can I Get a Torque Sensor Well, that is easy!. A strain gauge sensor is a thin waferlike device that can be attached to a variety of materials to measure applied strain These are used as a fundamental sensor in many types of sensors like pressure sensors, load cells, torque sensors etc Strain Gauge Working Principle.

A torque sensor is a type of throttle that determines how much juice to feed the motor based on how hard the rider is pedaling This is different from a cadence sensor which measures simply how fast you are pedaling Cheap cadence sensors are what can be found on most pedal assist system (PAS) bikes on the market today When done right, a torque sensor can make you feel bionic when you ride. 2Working principle of torque standard device in extreme environment The mechanical structure of standard device of torque sensor in extreme environment is shown in figure 1 Its working principle is the structure of horizontal reference torque standard device is adopted for extreme environment torque standard device. The steering angle and torque sensor reported here has been designed and developed against this background 2 REQUIRED SPECIFICATIONS Figures 1 and 2 show the mechanism for torque and angle sensing of the sensor developed here A torqueDevelopment of a Steering Angle and Torque Sensor of Contacttype by Akira Noguchi *, Kosuke Yamawaki *.

Magnetic rotational speed sensors use various magnetic proximity measuring principles to monitor the speeds of machine components in a range between 0 and 30,000 rpm In principle, RPM sensors convert mechanical motion into electric pulses with or without direct contact when positioned near a turning rotor, gear, shaft or other regularly moving. About Torque And More GmbH We are experts in the field of developing, testing and producing sophisticated and market leading magnetic principle based sensing technologies Our key applications for the global markets include automotive, industry, renewable energy, motorsport, power tools, mining and drilling and consumer products. How a Force Sensor Works The working principle of a force sensor is that it responds to the applied force, as well as converts the value to a measurable quantity Most force sensors are created with the use of forcesensing resistors Such sensors consist of electrodes and sensing film Forcesensing resistors are based on contact resistance.

Electric Bike World is the leader in the bicycle industry for any and all electric pedal assistance products Learn more about Electric Bike World today!. The torque is recorded by the torsion of the shaft using the strain gage principle Compare this product Remove from comparison tool See the other products burster präzisionsmesstechnik gmbh & co kg The Mini58 system, manufactured by ATI, is a force/torque sensor/transducer that is made with a compact size and has a lowprofile design. The sensor’s measuring range covers /−10 Nm A mechanical angle limiter prevents the torsion bar from being overloaded when higher steering torques are applied Variants Optionally, an index magnet and an index sensor can be incorporated into the torque sensor The index sensor delivers a signal to the ECU for each full turn of the.

Torque sensor5, which is some complicated in mechanical procession Based on the analyses of different types of torque sensors suitable for an EPS system, we try to design a novel noncontact torque sensor with low cost, suitable performance, and proper precision Design of the new torque sensor Fig 2 shows the schematic of the new torque. Torque sensors Type 4501A work in accordance with the DMS principle and supply an analog output signal in mV/V They are optimized for use in the screw driving assembly Not only the feeding of the supply voltage but also transmission of the measurement signal between the rotating shaft and the case take place via highquality, longlife slip rings These torque sensors are used mainly as. Electric Bike World is the leader in the bicycle industry for any and all electric pedal assistance products Learn more about Electric Bike World today!.

Torque sensors Reaction torque sensors (piezoelectric) A torque acting on the sensor produces tangential shear stresses in the quartz disks All the quartz disks are electrically connected in parallel, so the total output signal is proportional to the acting moment The sensor is integrated under high axial preload between a preload screw and a. In the case of magnetoelastic sensors, the magnetic susceptibility of a material changes due to mechanical stress being introduced This also allows the strain or stress to be inferred, since the magnetism is directly related to the amount of force being applied This makes them accurate enough for the purpose of functioning as a torque transducer. A torque sensor is attached to the steering column, near the torsion bar, to convert the torque to electrical signal The EPS ECU uses the signal to calculate the amount of power assist the Motor.

The sensor is made up of two main components A stainless steel shaft, dimensioned for the appropriate torque, and a second metal ring, which fits tightly on the shaft Although the ring appears to be normal steel, it is actually a special titaniumnickel material which has the property of being magnetoelastic.
